Hi,
My problem is the following:

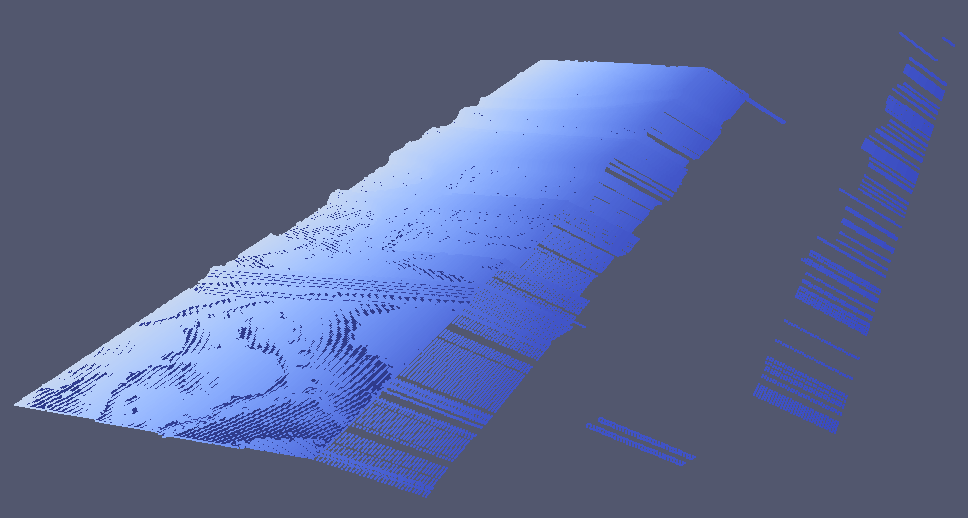

STL bound :
http://www.zupimages.net/up/15/20/nszz.png
STL visualisation without bound:
http://www.zupimages.net/up/15/20/6sri.png
And here is how I import STL from xml files:
(setshapemode)dp | real | bound(/setshapemode)
(setdrawmode mode="face"/)
(setmkbound mk="30"/)
(drawfilestl file= MinX="3.75" MinY="-1.32" MinZ="-0.1138" SizeX="4.0" SizeY="13.0" SizeZ="0.2276" "test.stl" )
(drawmove x="1.5" y="-1.32" z="0.1128"/)
Why I get a such bound ? It's not logical...
PS: The parenthesis replace : > and <
My problem is the following:
STL bound :
http://www.zupimages.net/up/15/20/nszz.png
STL visualisation without bound:
http://www.zupimages.net/up/15/20/6sri.png
And here is how I import STL from xml files:
(setshapemode)dp | real | bound(/setshapemode)
(setdrawmode mode="face"/)
(setmkbound mk="30"/)
(drawfilestl file= MinX="3.75" MinY="-1.32" MinZ="-0.1138" SizeX="4.0" SizeY="13.0" SizeZ="0.2276" "test.stl" )
(drawmove x="1.5" y="-1.32" z="0.1128"/)
Why I get a such bound ? It's not logical...
PS: The parenthesis replace : > and <
Comments
Regards
Alex
I did some tests and when I visualize the stl file with Blender, I can see something wrong (even if Paraview gives a perfect result). So I did some modifications to my algorithm (to generate mesh) from matlab. And now I get good results concerning the bounds!
So the problem doesn't come from DualSPHysics Gencase but from the stl file. Anyway, thank you very much for your help and sorry for this wasting time...
Regards,
Mustaf
